Configure your outlet.

Personalise the minimalist unifit series for your project.

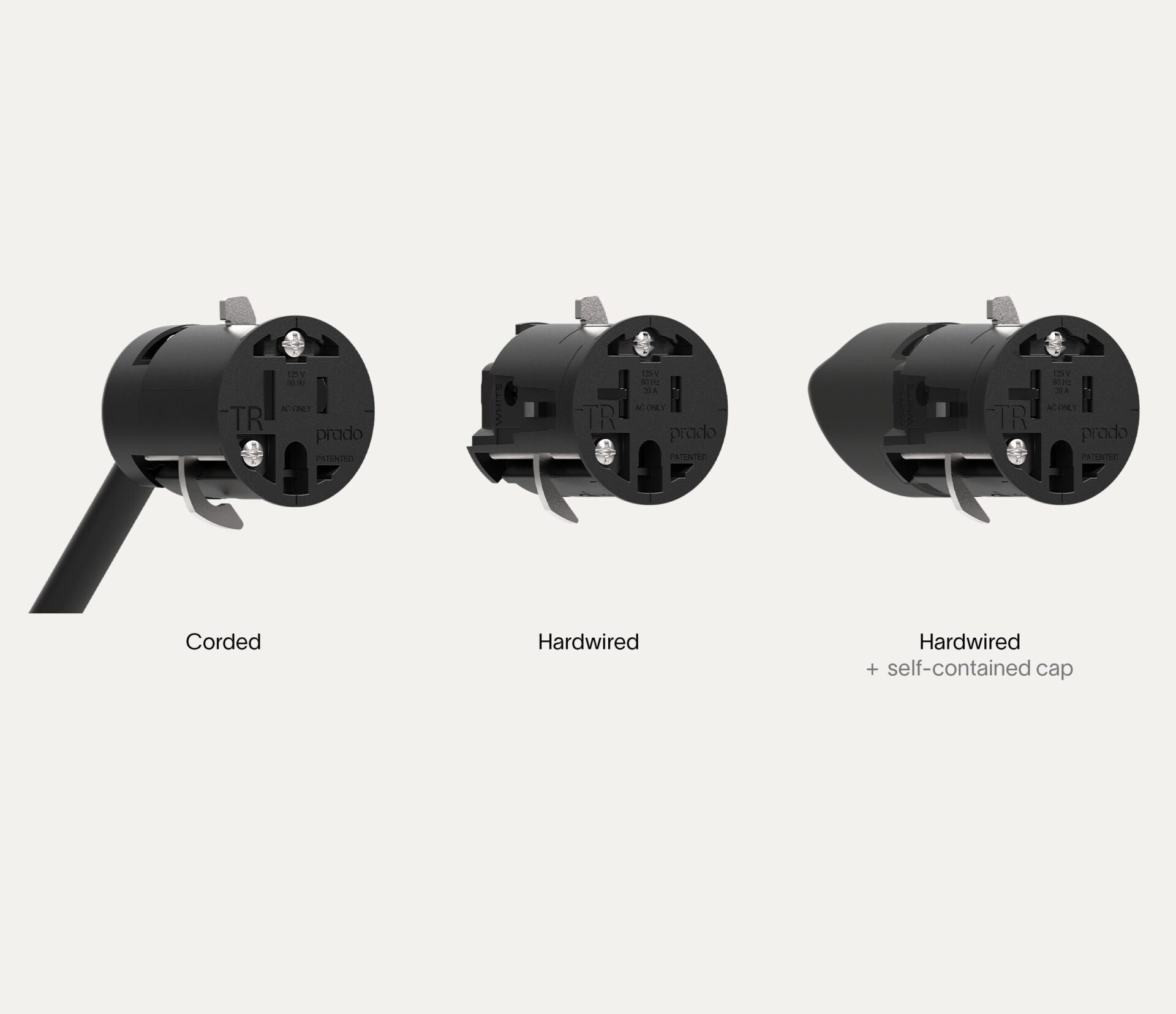

Cabling.

Install hardwired, self-contained, or corded.

Hardwired Installation

The hardwired module features screw terminals, just like a standard electrical receptacle, and supports both 15A and 20A installations. When installed without the optional self-contained cap, a back box and a back box cover plate are required. Cover plate (15A/20A) sold separately.

Self-Contained Installation

When installed with the included self-contained cap - designed specifically for Romex cable - unifit outlet single can be mounted without a back box, providing a cleaner and more flexible solution. Installs from the front and removes just as easily - no tools required. Cover plate (15A/20A) sold separately.

In NYC, metallic junction boxes are mandatory. Our unifit hardwired with back box and back box cover plate is approved by the NYC DOB. See approval document.

Corded Installation

The corded version comes with a 5 ft. cable and a NEMA 5-15 plug, making it ideal for furniture applications. Available in a 15A version only.

Alternatively, you can create a custom corded version by pairing a unifit outlet with self-contained cap with a UL/ETL-listed 12-14 AWG power cord. With the length of choice, and with the plug style of choice (flat, right-angle, etc.).

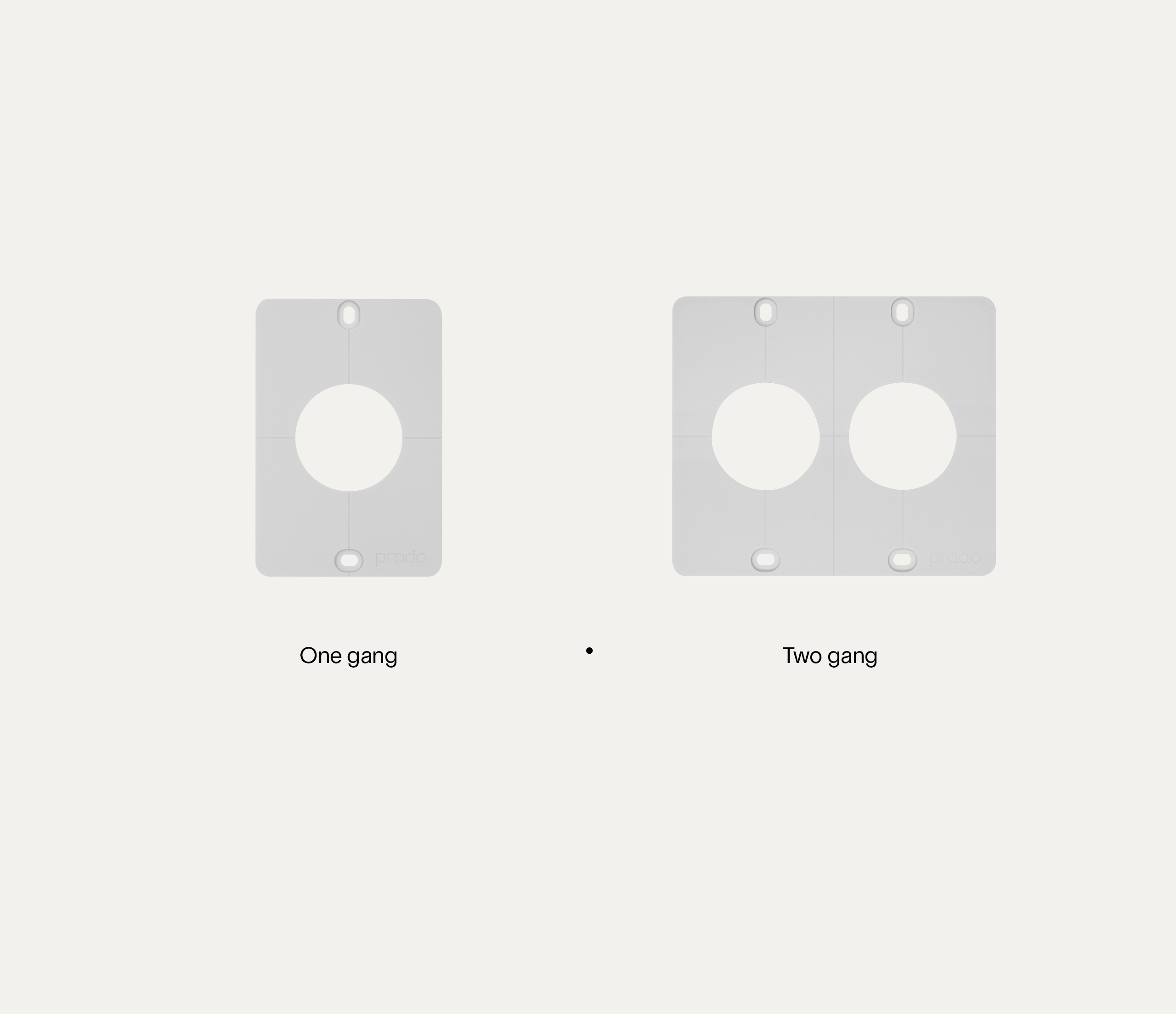

Back box cover plate.

Mandatory when installing with a back box.

These back box cover plates are designed to enclose the back box in hardwired installations that do not use a self-contained cap. They also provide added reinforcement for the adjustable lugs, particularly when mounted in softer materials. They are a mandatory accessory for all hardwired installations without self-contained cap, compatible with standard back boxes. For vertical configurations with two outlets, install the two-gang back box at a 90° rotation.

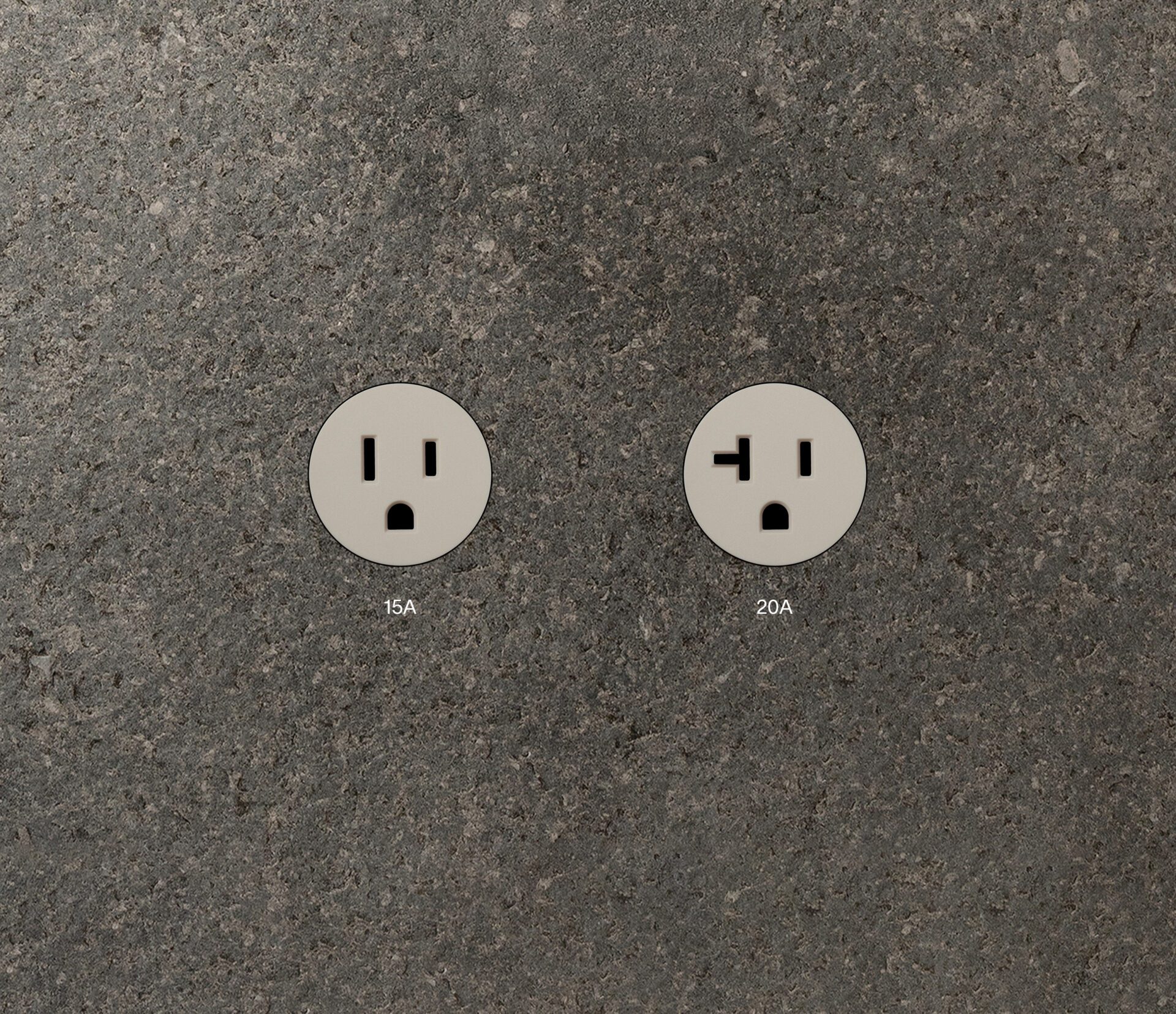

Amperage.

Choose according to your application.

15 Amp

15A receptacles are commonly used in residential settings for general-purpose outlets. They are ideal for bedrooms, living rooms, and other standard household areas and are connected to 14-gauge wiring, which is standard in many homes.

20 Amp

20A receptacles are designed for areas where higher power demands are expected. They are commonly found in kitchens, workshops, and areas where power-hungry appliances may be used. 20A receptacles can handle larger appliances like microwaves, refrigerators, and power tools that may require more current. They need to be connected to 12-gauge wiring, providing additional capacity for higher current. Hard-wired only.

Important Note:

It's crucial to match the receptacle with the appropriate wiring and circuit breaker. Using a 20A receptacle with 15A wiring can create a safety hazard. Also, check the power requirements of appliances to ensure compatibility with the corresponding receptacle.

Cover plate.

Sold separately, choose your favorite.

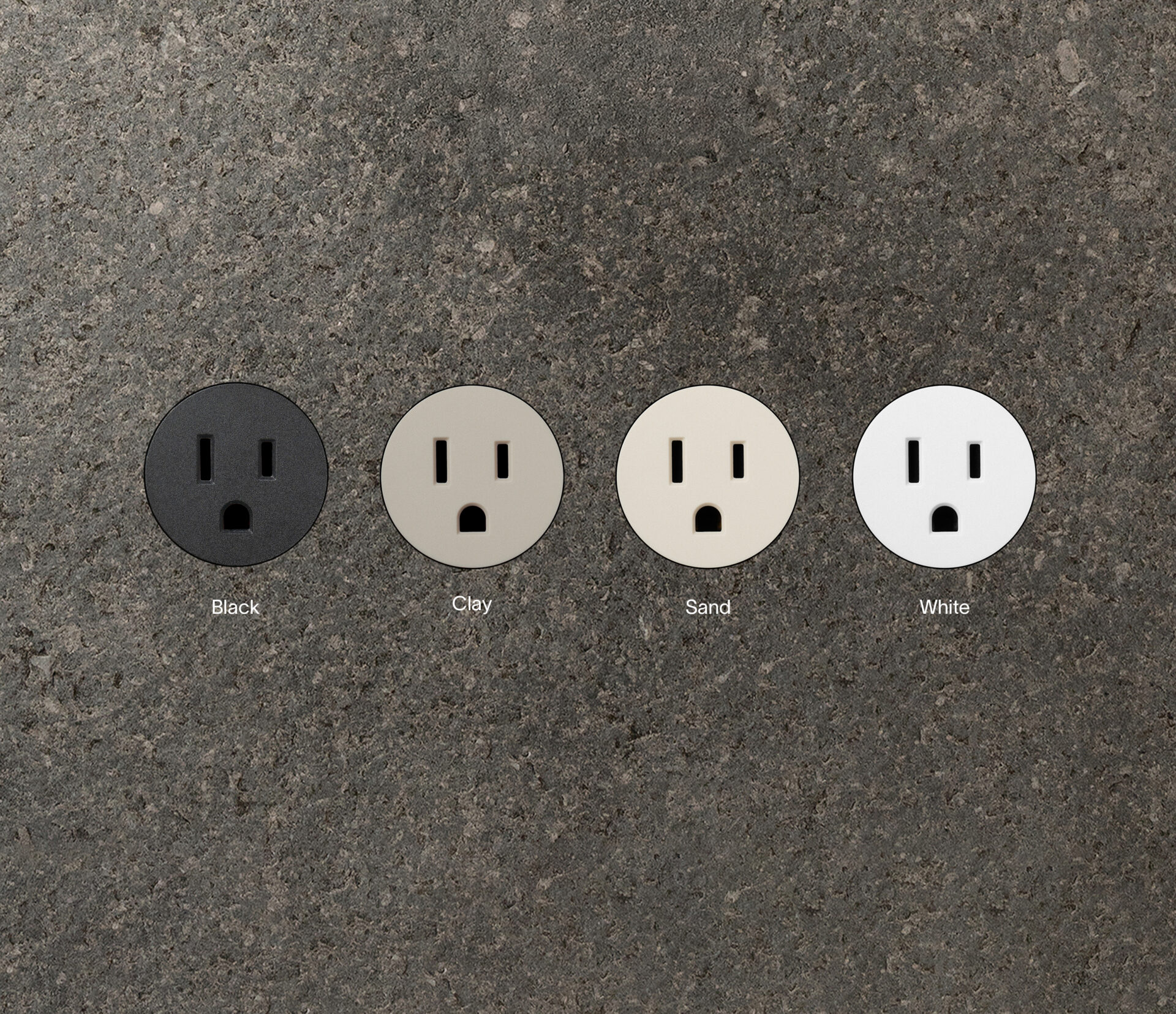

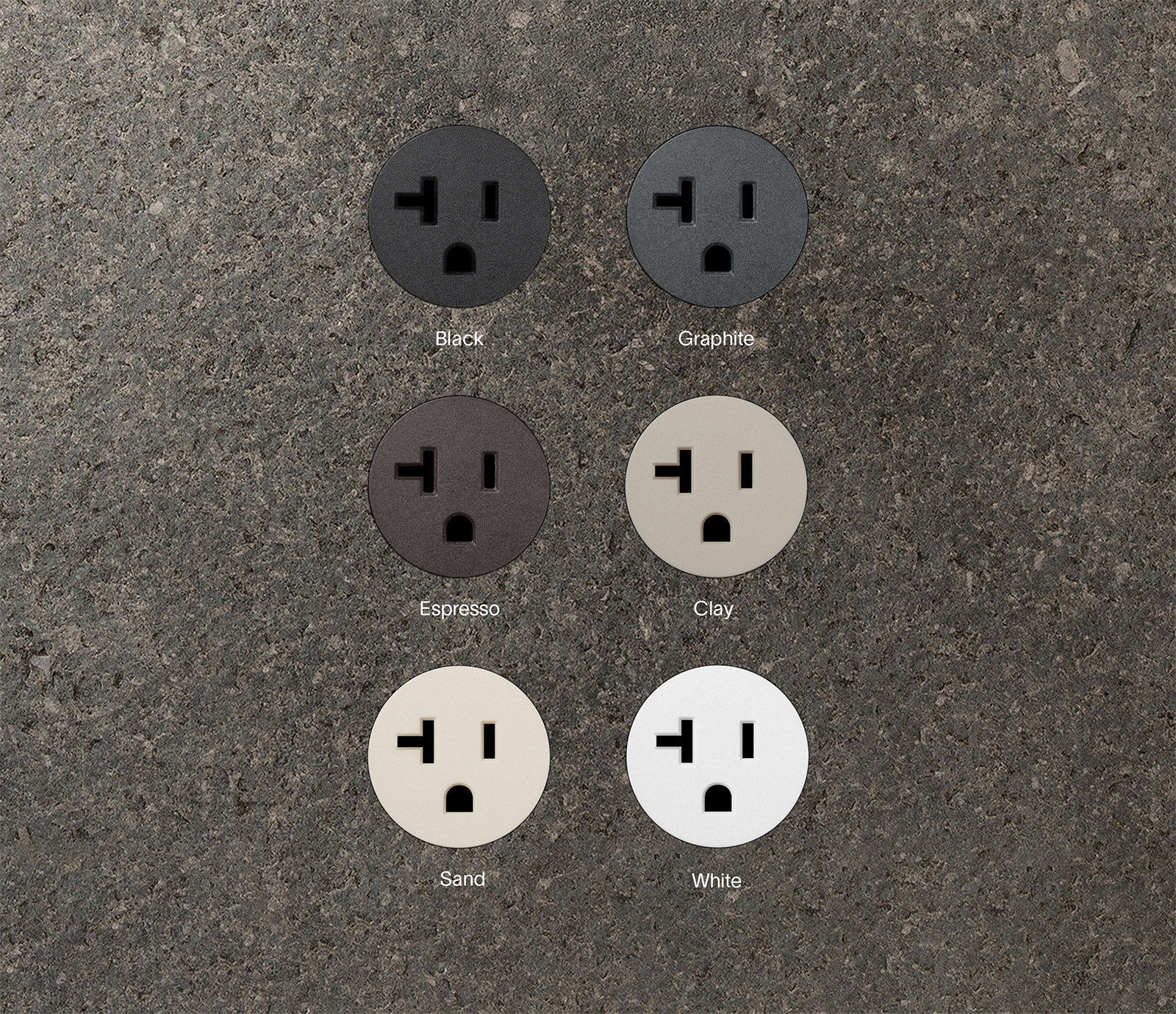

Select color

Choose your finish.

Choose between 6 carefully selected colors. Cover plate is easily removable (without tool), so you can switch color at any time. Looking for a custom color for your project? Contact us via support@prado.com to learn more about cost and timings.

Cover plate.

Sold separately, choose your favorite.

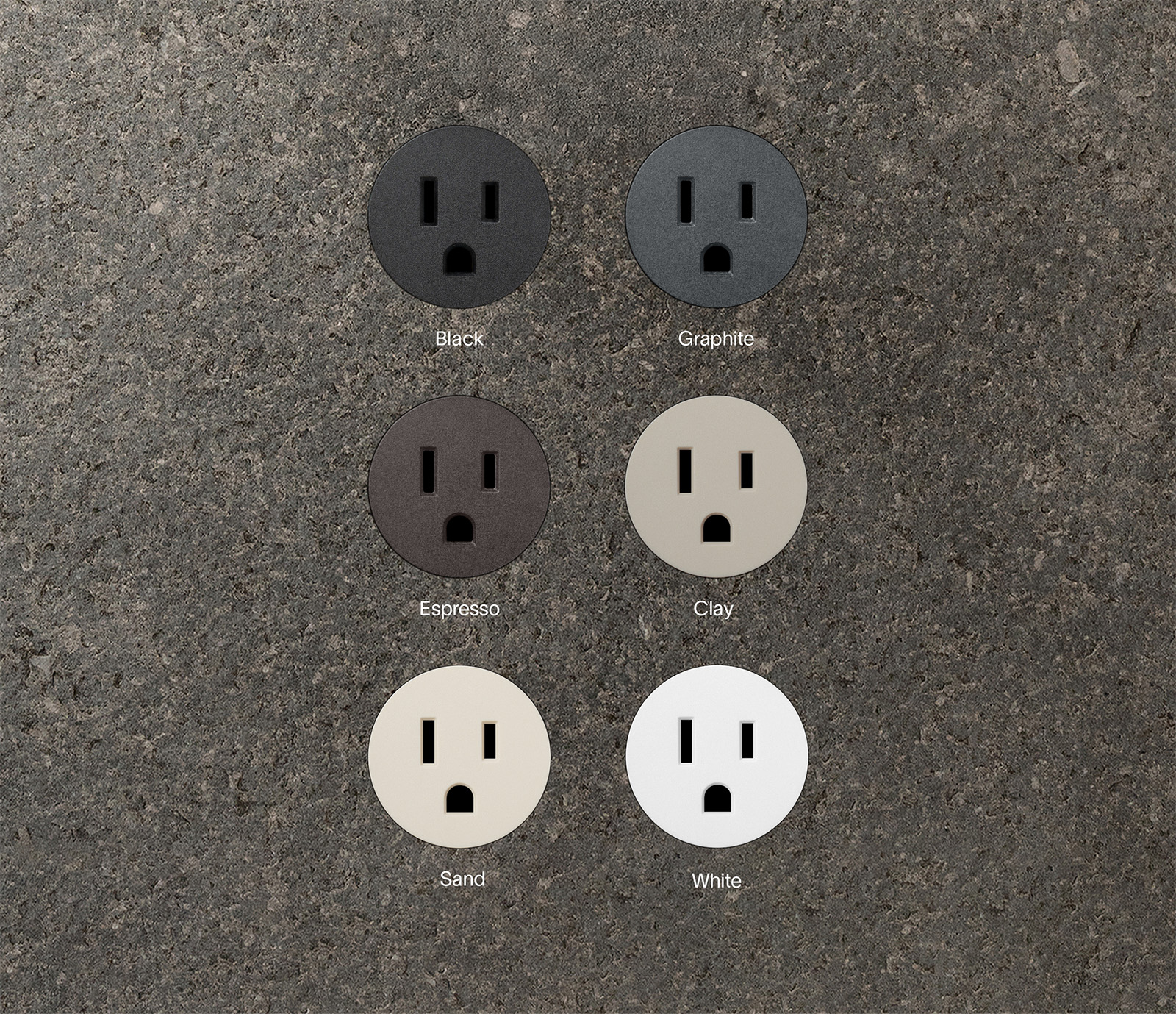

Select color

Choose your finish.

Choose between 6 carefully selected colors. Cover plate is easily removable (without tool), so you can switch color at any time. Looking for a custom color for your project? Contact us via support@prado.com to learn more about cost and timings.

No product found, please select all options.
Shipped the next business day.
Select all desired options.
Shipped the next business day.
Selected module

Accessories
Shipped the next business day.

Product details

Downloads

unifit single - cutout template
unifit hardwired / self-contained - tech specs
unifit hardwired / self-contained - installation
unifit hardwired - NYC DOB approval document
unifit corded - tech specs
unifit corded - installation
flush mount countersink guide

Accessories

back box cover plate

Specifications

application
drywall, wood and stone
panel cut-out
1-3/8" hole
panel thickness
1/4 to 1-3/8" (adjustable lugs)
electrical
15A - 125V (corded) 15/20A - 125V (hardwired)
cabling (corded)
comes with a 5ft. cable and a NEMA 5-15 plug
cabling (hardwired)
comes with screw terminals comes with a self-contained cap
cover plate
required, not included
certification
ETL Listed (UL 498 / CSA 42)
other
tamper resistant patent pending
