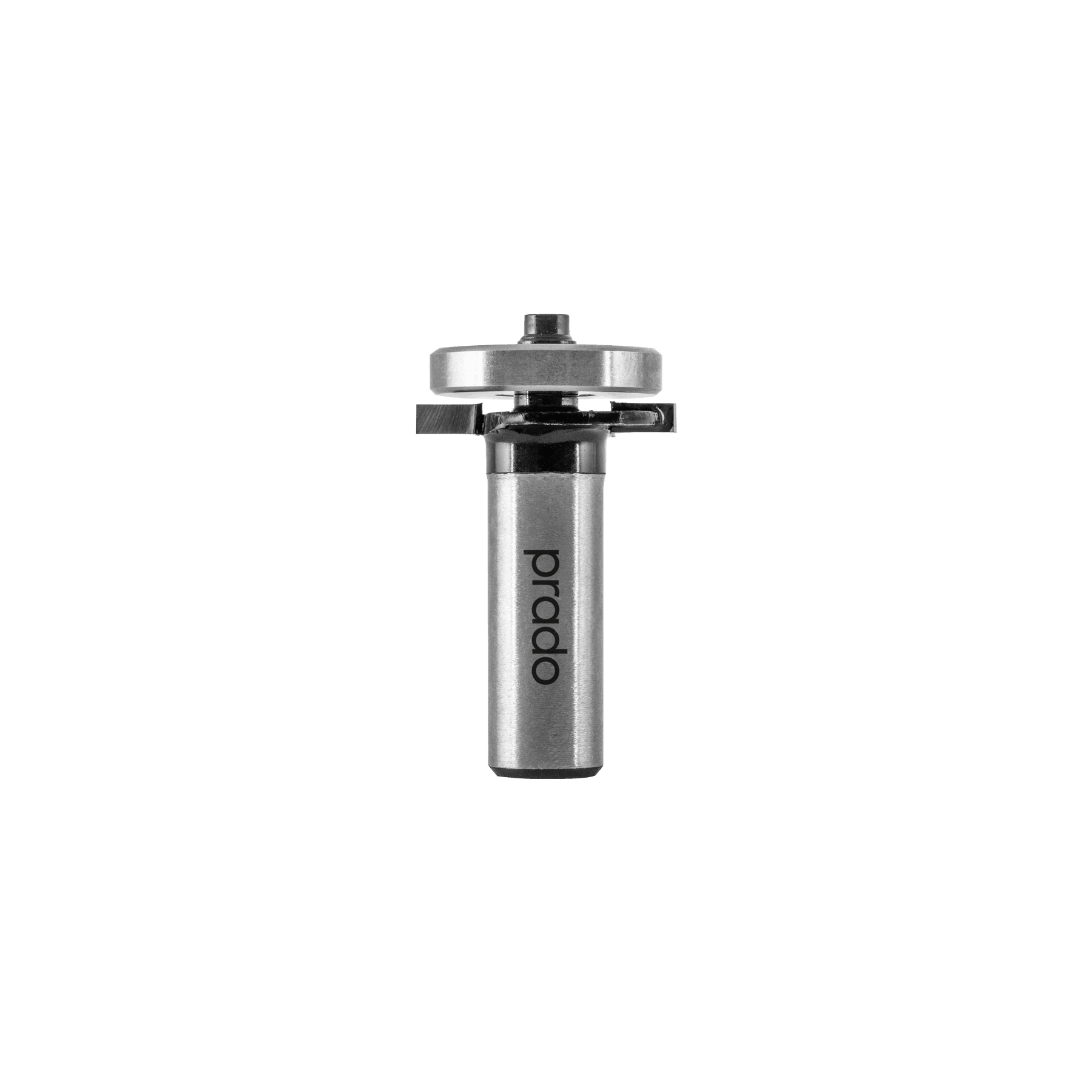

rabbeting router bit

CAD$ 29.00

8800-2531

Designed for unifit series, both single and duplex. Creates a clean 1/16″ (1.6 mm) rabbet/countersink around the hole for flush mounting. Recommended router cutting depth setting: 1/10″ (2.5 mm). Ideal for furniture, cabinetry, and architectural joinery.

Shipped the next business day.

Product details

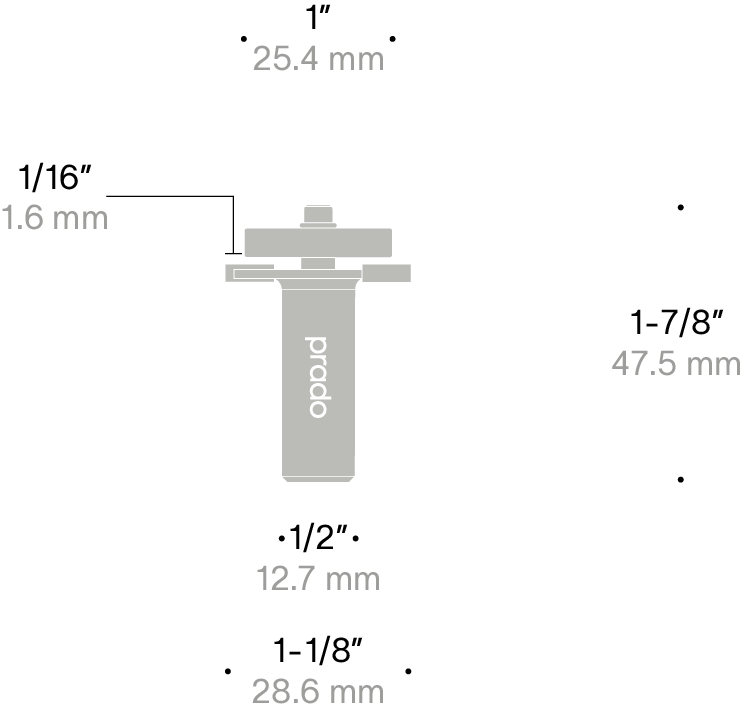

Specifications

cutting depth
1/16" (1.6 mm)
countersink height
to be set by the installer to 1/10" (2.5 mm)
shank diameter
1/2" (12.7 mm)
bearing diameter
1" (25.4 mm)
cutter material
carbide tipped
application
flush mount countersink - wooden panels
compatibility
unifit series (single and duplex)

Downloads

Rabbeting router bit

for unifit series, single and duplex

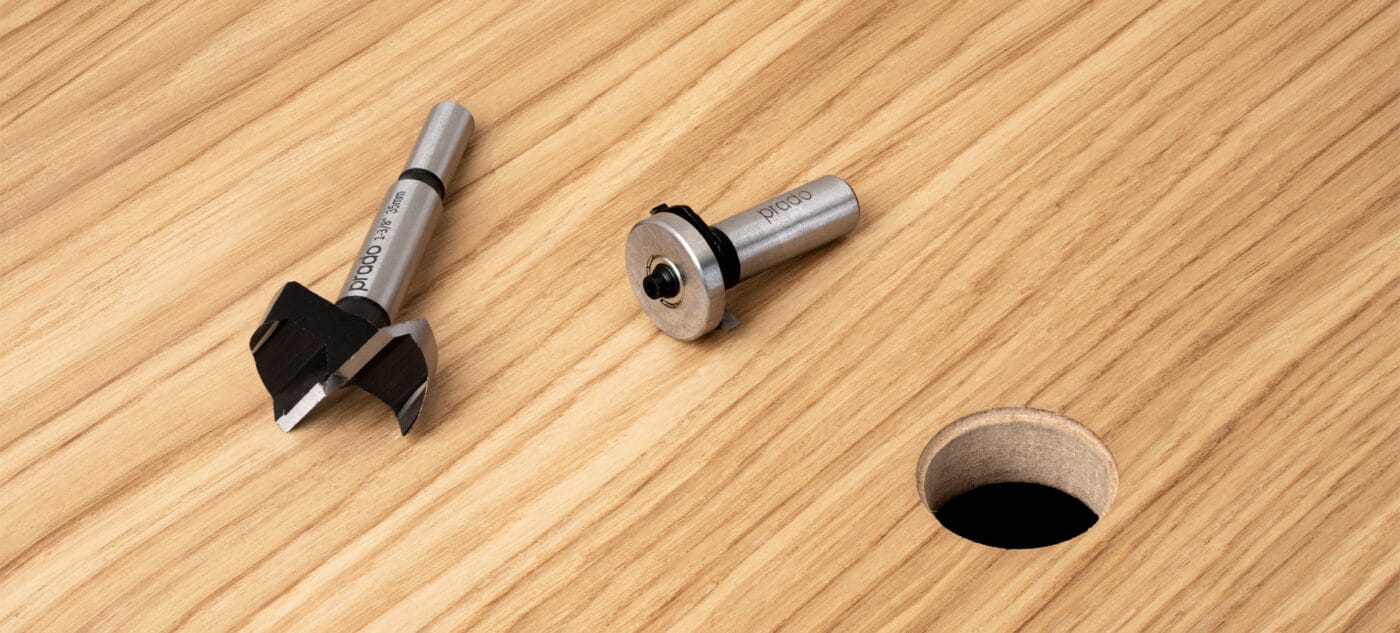

Start by drilling the correct hole (single or duplex), then follow up with the rabbeting bit to create a clean 1/16″ (1.6 mm) countersink around the hole for flush mounting. Recommended router cutting depth setting: 1/10″ (2.5 mm).
